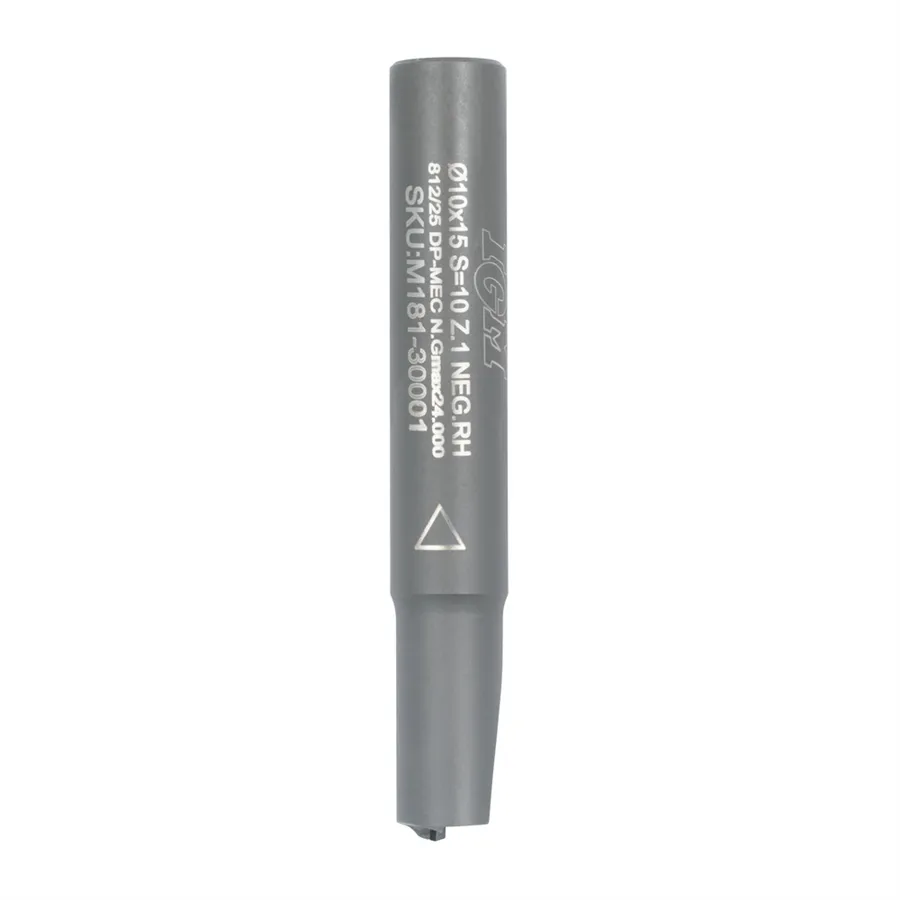

IGM M181 Diamond Router Cutter with Negative Shear Angle - D10x15 L65 S=10 Z1neg.
IGM M181 Diamond Router Cutter with Negative Shear Angle - D10x15 L65 S=10 Z1neg.IGM M181 Diamond Router Cutter with Negative Shear Angle - D10x15 L65 S=10 Z1neg.

IGM M181 Diamond Router Cutter with Negative Shear Angle - D10x15 L65 S=10 Z1neg.


List price
96.16 €
118.28 € incl. VAT

Quantity discount
5% /From 10 pcs

Availability on stores
Main Warehouse (delivery within 2-3 days)
2 pcs

Order Code
M181-30001


51


1 pcs
67.32 €
82.80 € incl. VAT
1 pcs
88.15 €
108.42 € incl. VAT
2 pcs
96.16 €
118.28 € incl. VAT
1 pcs
123.41 €
151.79 € incl. VAT

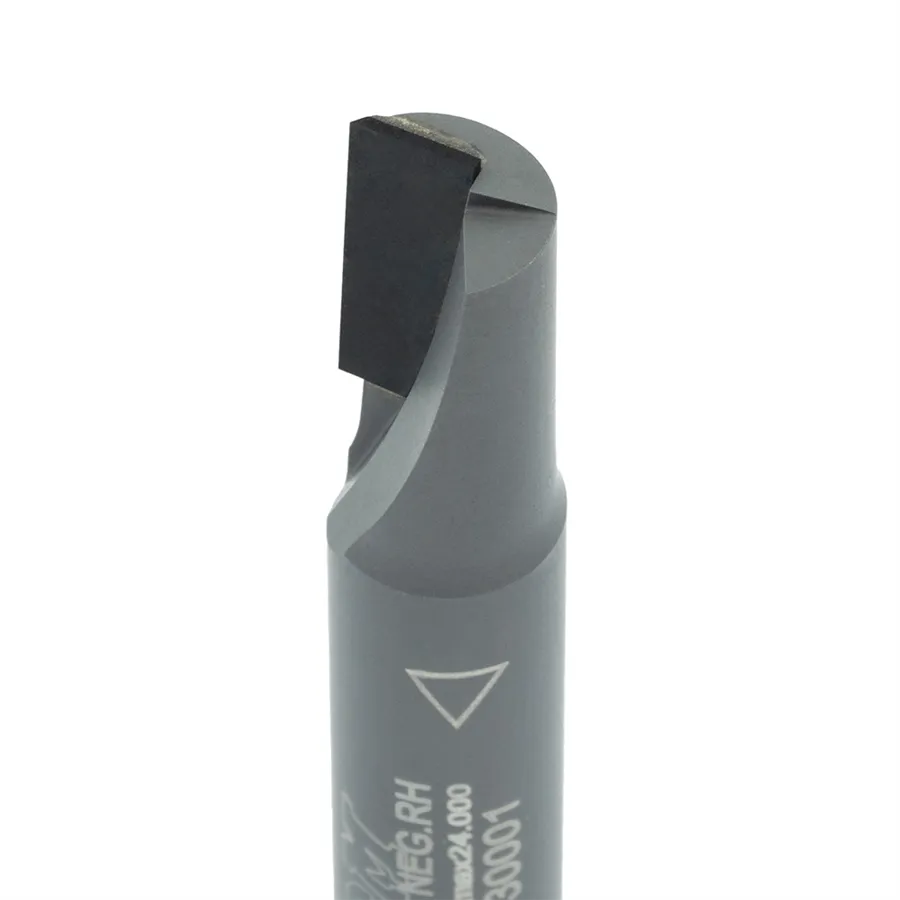

• PKDia tooth with a negative angle of the cutting edge.
• Resharpenable cutter (max 3 times).
• 40x longer service life


Diamond Router Cutter M181 is designed for all types of CNC machines. Cutter life is approximately 40x longer than that of a standard tool with carbide HM edges.
Ideal tool for production of joints and cutouts in materials such as MDF, DTD and solid wood. Consider the type of operation and type of material before routing.

Parameters:
• Maximum speed: max. 24 000 rpm
• Regular speed: 18 000 rpm
• Feed speed on MDF: 3-4 m/min
• DIA Leaf height: 3 mm


Shank (S)10 mm
Cutting diameter (D)10 mm
Total length (L)65 mm
Cutting height (I)15 mm
Bearingno
Number of cutting edges (Z)1
Geometrydowncut
Rotation directionright-hand rotation
Tooth MaterialDP
