IGM LAGUNA CFlux 1 Cyclone Dust Collector 230V (Unpacked)
IGM LAGUNA CFlux 1 Cyclone Dust Collector 230V (Unpacked)IGM LAGUNA CFlux 1 Cyclone Dust Collector 230V (Unpacked)IGM LAGUNA CFlux 1 Cyclone Dust Collector 230V (Unpacked)IGM LAGUNA CFlux 1 Cyclone Dust Collector 230V (Unpacked)

IGM LAGUNA CFlux 1 Cyclone Dust Collector 230V (Unpacked)


List price
1 969.00 €
2 421.87 € incl. VAT

Save
25% / 609.23 € incl. VAT

Your price
1 473.69 €
1 812.64 € incl. VAT

Availability on stores
Main Warehouse (delivery within 2-3 days)
1 pcs

Order Code
Z999-00682

51

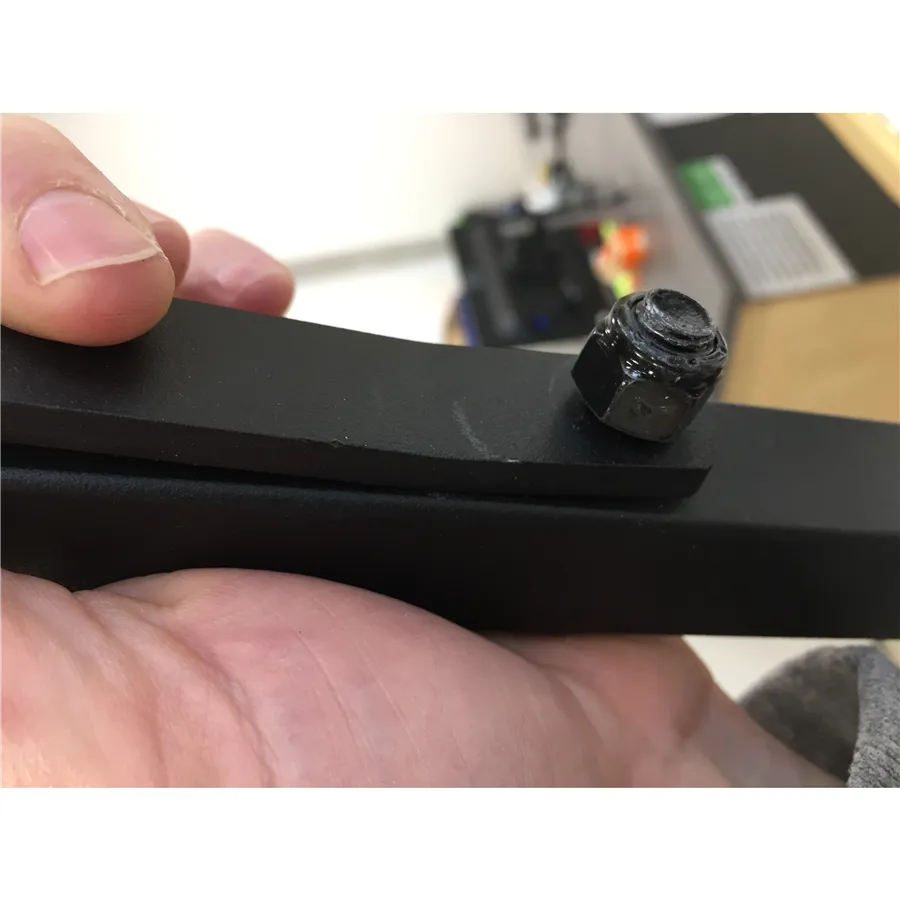

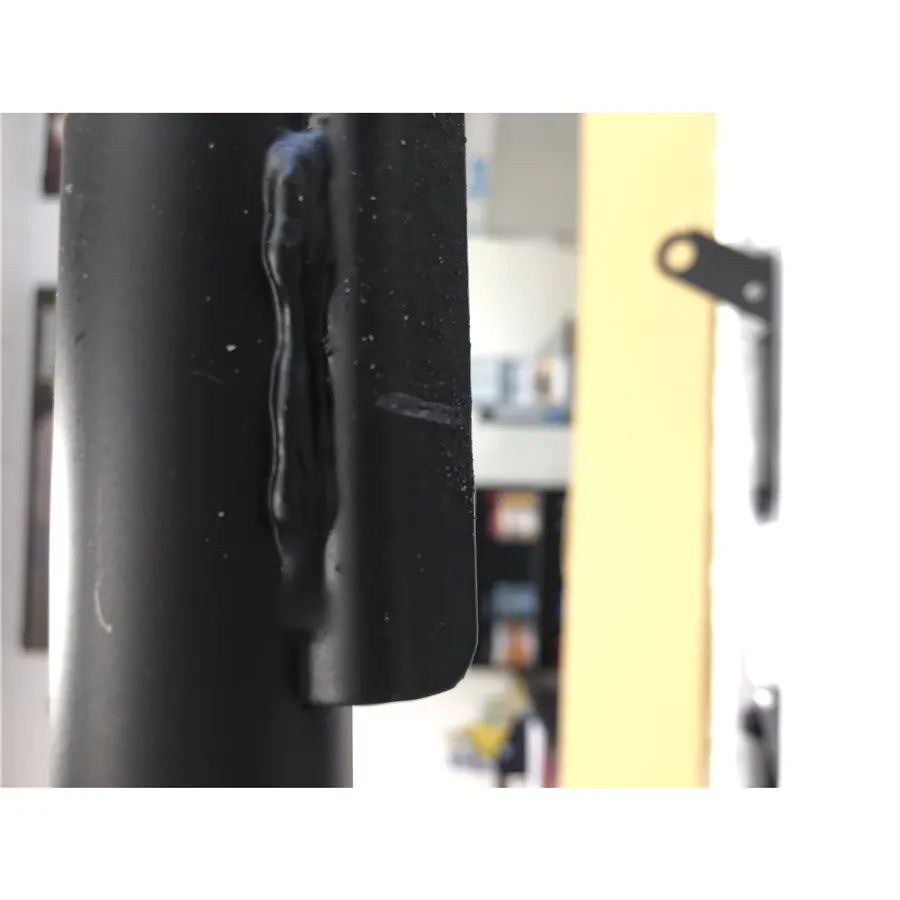

Damaged box, machine unused and in good condition, 2 small scratches on the handle.

Efficient Cyclone Collector for Small Professional Workshop


• Efficient cyclone technology with two-stage filtration.
• High filtration efficiency 99,97 % of particles over 1 micron.
• Clean the filter without disassembly.
• Sturdy metal construction.
• Clever drum design with vacuum sealing of the waste bag.
• Drum with a window for visual check of waste level.
• Swivelling casters on the collector and the drum.
• Remote control.

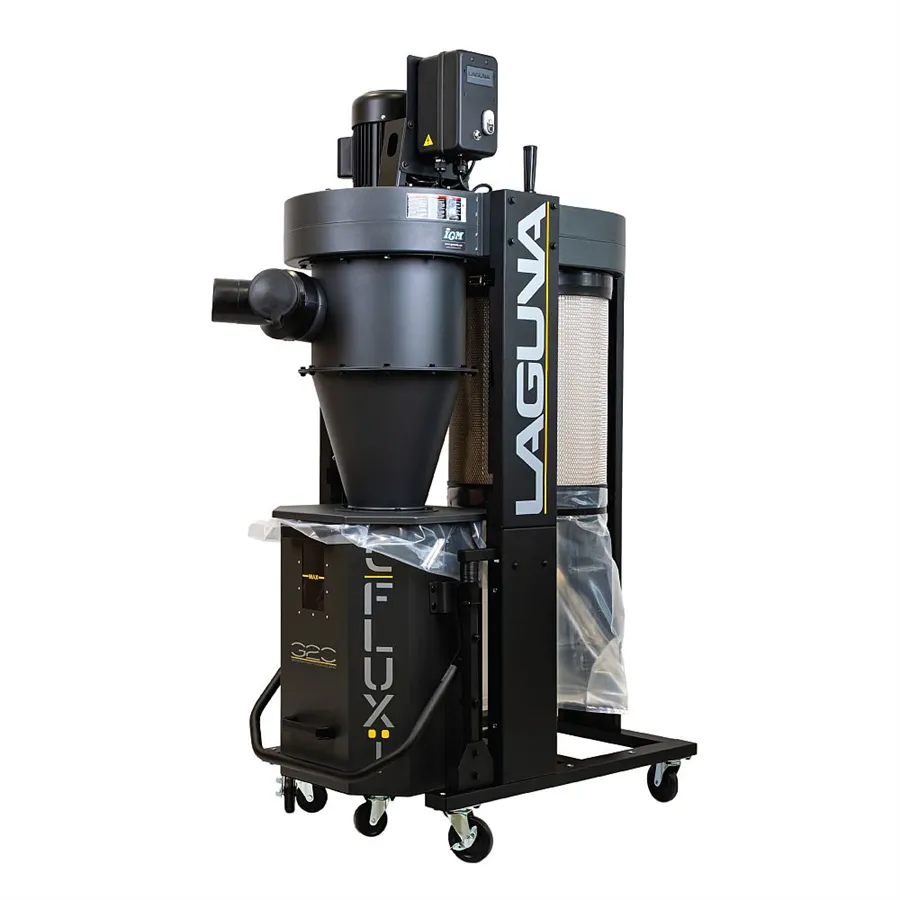

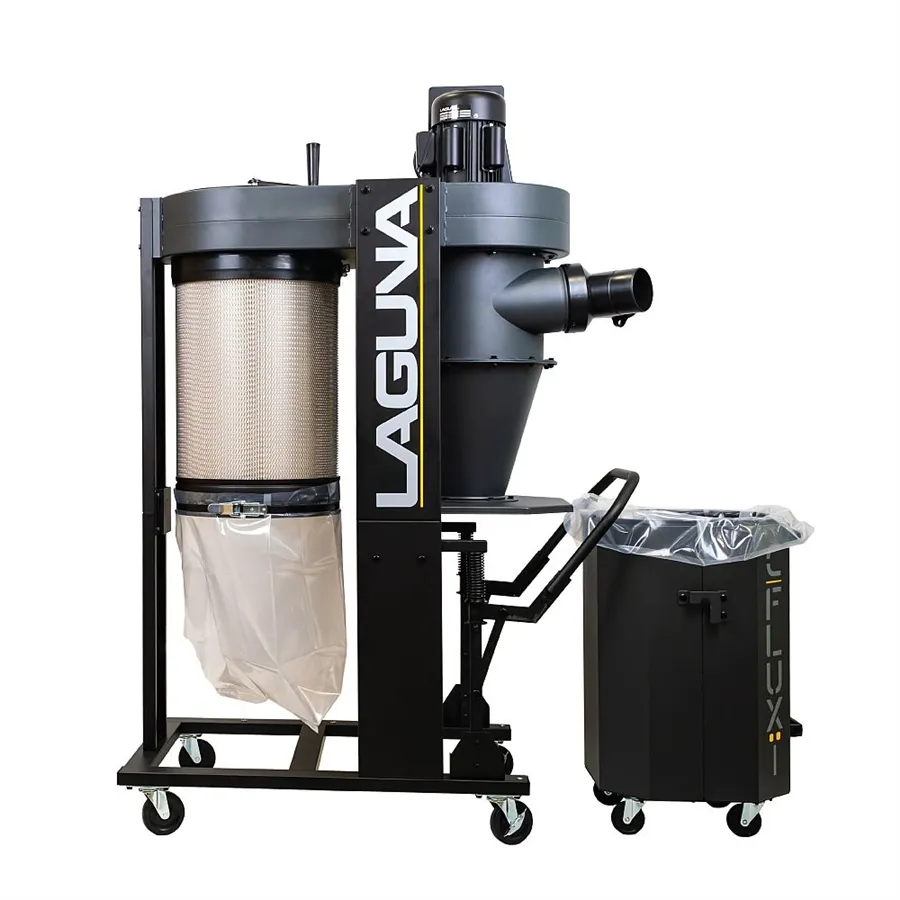

The CFlux1 cyclone dust collector is a powerful collector ideal for a small workshop. Cyclone technology maximizes airflow and improves efficiency.

Efficient filter with manual cleaning
Firmly integrated microfilter does not restrict airflow, enhancing the efficiency of filtration system. The CFlux 1 is supplied with a pleated filter with an efficiency of 99,97 % for particles over 1 micron in size. Handy rotation paddle assembly inside the filter simplifies cleaning without the need for disassembly and also prevents clogging. The lower part of the filter is fitted with a waste bag to collect fine dust.

Clever drum design
Emptying the waste drum has never been easier. A clever lifting mechanism lifts up the drum in one motion. Lift the handle to set the drum down. By pushing the handle down, the mechanism lifts the drum with casters and seals it against the drum lid. Drum casters remain up in the air allowing you to easily move the machine around the workshop when the casters on the collector are unlocked.

Cyclone technology
The two-stage cyclone filtration technology offers far better performance than comparable one-stage collectors. Larger chips are separated into the drum before they reach the second filtration stage. This technology ensures consistent airflow.

Supplied partially disassembled in a shipping crate on a pallet. Assembly time is approximately 4-5 hours (two people recommended).

• Type: CFlux1
• Rating: Professional
• Power Output (230V): 1100 W
• Airflow: 1786 m3/h
• Noise Level: 82 dB
• Drum Volume: 95 l
• Drum Waste Bag: 1090 mm x 810 mm
• Filter Waste Bag: 660 mm x 620 mm
• Max. Pressure: 2514 Pa
• Filtration Efficiency: 99.97 % over 1 micron
• Inlet Diameter: 1x 150 mm or 2x 100 mm
• Machine Dimensions (LxWxH): 1092 x 610 x 1753 mm
• Machine Weight: 125 kg
• Package Dimensions (LxWxH): 1225 x 720 x 1240 mm
• Package Weight: 140 kg


Supplied with:
• Remote Control
• 1x Drum Waste Bag
• 1x Filter Waste Bag
• Pleated Microfilter
