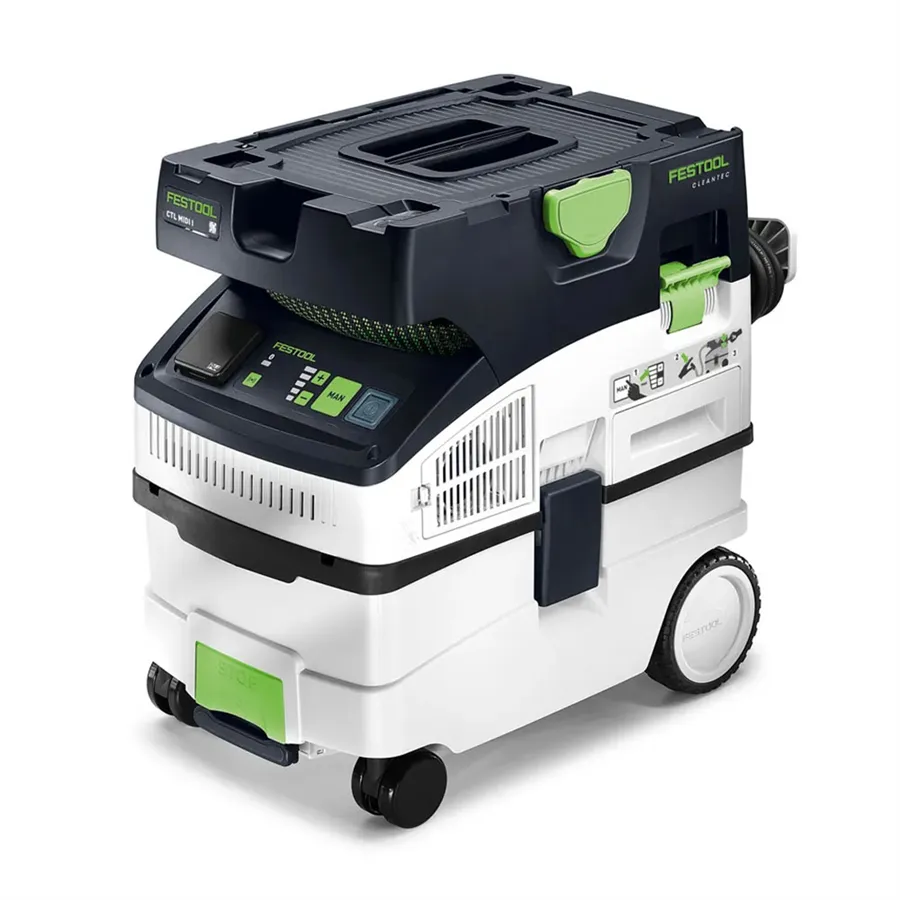

Compact. Mobile. Sophisticated.

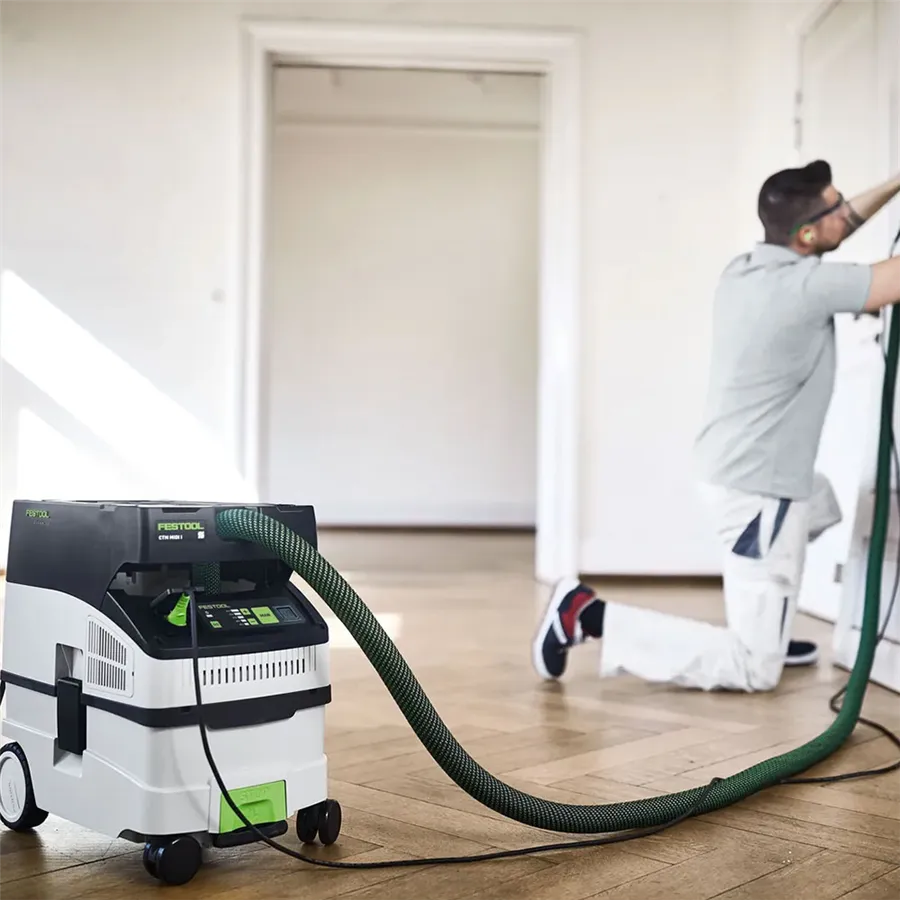

Low weight, compact dimensions and a host of innovative details – the new CTL MIDI compact extractor impresses in all aspects. It has intuitive touch operation, a smooth suction hose and a level storage area for tools and consumables. Manual dedusting and being able to replace the main filter from the outside ensure long-lasting work that protects your health. Includes integrated Bluetooth® technology – the mobile dust extractor is automatically started by the Bluetooth® battery pack or by the remote control. Also has an internal hose holder, Systainer T-LOC connection and practical cord holder for tidiness and speed. All this together conveniently ensures clean air during service and installation work.
• Mobile: Ideal for use on the go thanks to compact dimensions, low weight and robust chassis.
• Intuitive: Touch operation for intuitive control of the mobile dust extractor
• Keep working until the filter bag is full thanks to manual dedusting

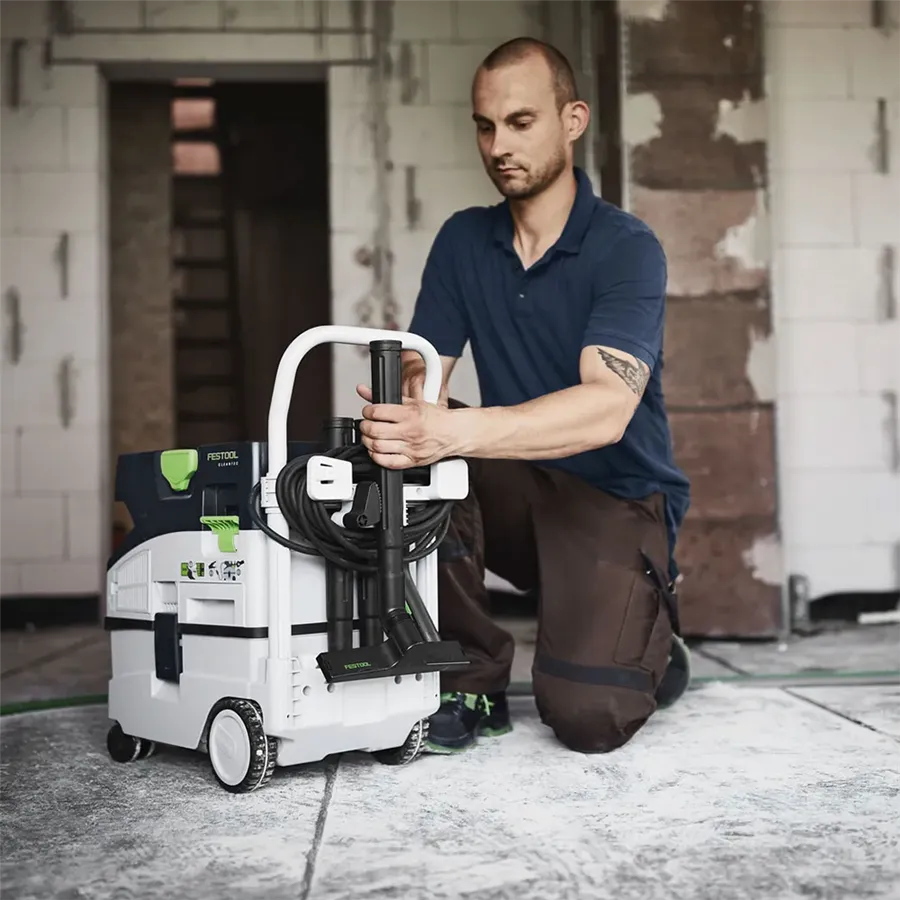

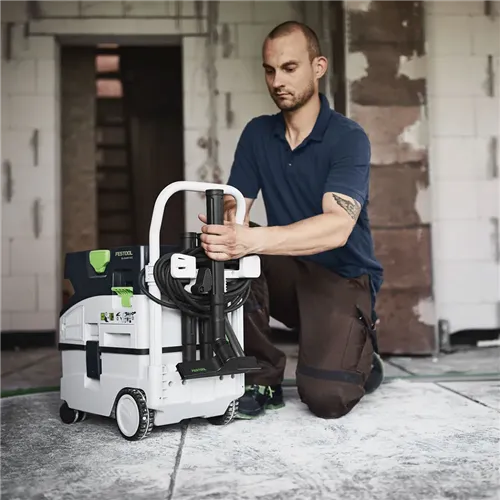

• Internal hose holder for safe and clean transport of the smooth suction hose
• Saves you a trip to the extractor – thanks to the integrated Bluetooth® technology, the mobile dust extractor is started automatically by Bluetooth® battery packs or remote control
• Level storage area – ideal for storing tools and consumables
• Clever: Simple replacement of the main filter from the outside.

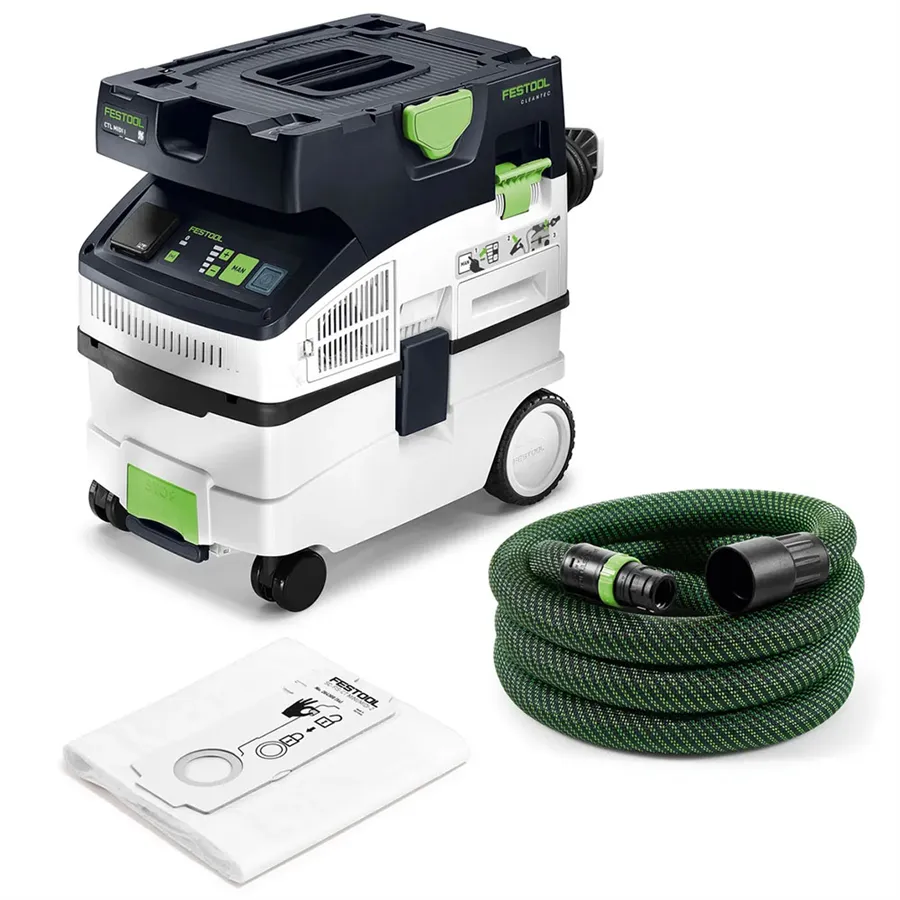

• Smooth suction hose with conical geometry for high suction power and seamless processes without catching
• External cord holder with folding mechanism for winding up the cord with a simple turn
• SYS-Dock with T-LOC for connecting Systainers in an instant
• Bluetooth® functionality for extractor, remote switch-on for cordless tools
• With manual filter and filter bag cleaning
Main applications
• For dust with limit values > 1 mg/m³
• On-site extraction for electric power tools for minor or brief sanding, routing, sawing and drilling work
• Ideal for mobile use in service and installation work and for final cleaning
• Suitable for both wet and dry extraction (special wet filter required for wet extraction)
Technical data:
• Power consumption 350 – 1 200 W
• Max. volume flow 3700.00 l/min
• Max. vacuum 24000.00 Pa
• Filter surface area 3369.00 cm²
• Rubber-insulated mains cable 7.50 m
• Container/filter bag capacity 15/12.5 l
• Dimensions (L x W x H) 470 x 320 x 495 mm
• Max. appliance socket connected load 2200.00 W
• Dust class L
• Cable length 7.50 m
• Product weight without accessories 12.10 kg
• Transport weight incl. accessories 14.30 kg
• Technology Bluetooth®
• Drive type Mains
Noise and vibration values
• Dust extraction: A-weighted sound pressure level, LpA 70.00 dB(A)
• Dust extraction: Standards series EN 60745 60335-2-69
• Dust extraction: Uncertainty (noise) K 3.00 dB
