Precise sawing to go. The cordless table saw in Systainer format.
The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in its size. Make parallel cuts of up to 280 mm, cross-cut widths of up to 450 mm and angled cuts of -2° to 47°. The unique digital operation produces results with maximum precision, down to accuracies within a tenth of a millimetre. The 2x18 V dual battery system in combination with the brushless EC-TEC motor will impress you with its power and torque – you won't notice any difference compared with mains-powered machines. Together with the UG-CSC-SYS underframe, you have the perfect worktable immediately on hand, and transport from the vehicle to the point of use thus succeeds effortless. The CSC SYS 50: Precise sawing to go.
- Versatile: Parallel cuts up to 280 mm; cross cut width of up to 450 mm. Angled cuts from -2° to 47°.
- Practical: At a cutting height of up to 35 mm, through to angled cuts right down to -10°; ideal for undercutting infill panels.
- Compact and mobile: Can be transported with one hand in the practical Systainer format. Even lighter with the UG-CSC-SYS underframe.
- Extreme precision: The height and angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimetre.
- Reproduce cuts easily: The height and angle (mm and inches) are set parallax-free via the digital display, i.e. more accurately than any visual judgement. Reproducible cuts are ensured.
- Convenient: Four saw blade positions can be saved and selected via the digital display.
- Highly precise parallel side fence: Robust parallel side fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results.
- Highly precise angle stop: The angle stop is optimally aligned and centrally clamped via a groove on the slide. For mitre angles between -70° and +70°
- Absolutely judder-free: Ball bearing-mounted slide for parallel and angled cuts with maximum precision
- Powerful: The brushless EC-TEC motor with high speeds of 6800 rpm guarantees fast sawing progress and perfect cutting results
- Long-lasting: The combination of a brushless EC-TEC motor and a dual battery system with two 18 V battery packs (from 4.0 Ah) ensures a long operating performance
- Long-lasting: The brushless EC-TEC motor is long-lasting, robust and maintenance-free
- Work appropriately for the material: With saw blades for every material; speeds appropriate for the material can be preselected via the digital display
- Dust-free: Chip collection bag for dust-free work, even without a mobile dust extractor
- Healthy working with a system: Ideal also in combination with the Festool cordless extractors
- Compatible: Fits together with the entire Festool Systainer system and bott vehicle equipment
- Flexible underframe: The UG-CSC-SYS underframe is the perfect solution for transport to the point of use and the ideal worktable in one
- Unique: Three-year warranty for battery packs and chargers too
Main applications- Cross-cuts up to 450 mm wide, quick and precise with the integrated slide
- Rip cutting up to a cutting height of 48 mm and a width of 280 mm with a secure support on the integrated fold-out table
- Angled cuts from -2° to 47° (-10° possible in the event of a restricted cutting depth of 21–32 mm) thanks to tilting saw blade
- Exact height and angle adjustment by means of electric stepper motors. Can be set precisely to 0.1 mm and controllable via a display
- Transport practically in the handy Systainer format
Technical Data- Battery voltage (rated voltage) 2 x 18 V;
- Idle engine speed 4500 – 6800 min⁻¹;
- Saw blade location hole 20.00 mm;
- Inclination angle -10 - +47 °;
- Cutting height 0° 0 - 48 mm;
- Cutting height 45° 0 - 34 mm;
- Cutting height -10° 21 - 32 mm;
- Mitre angle 0 - 70 °;
- Parallel cut width 280.00 mm;
- Tabletop height 228.00 mm;
- Dimensions (L x W x H) 512 x 396.00 x 296.00 mm;
- Dust extraction connection diameter 27 mm;
- Drive type Battery;
- Product weight without accessories 15.00 kg;
- Transport weight incl. accessories 23.5 kg
Noise and vibration values- Sawing: Standards series EN 62841;
- Sawing: Uncertainty (noise) K 3.00 dB;
- Sawing: A-weighted sound power level, LWA 98.00 dB(A);
- Sawing: A-weighted sound pressure level, LpA 85.00 dB(A)

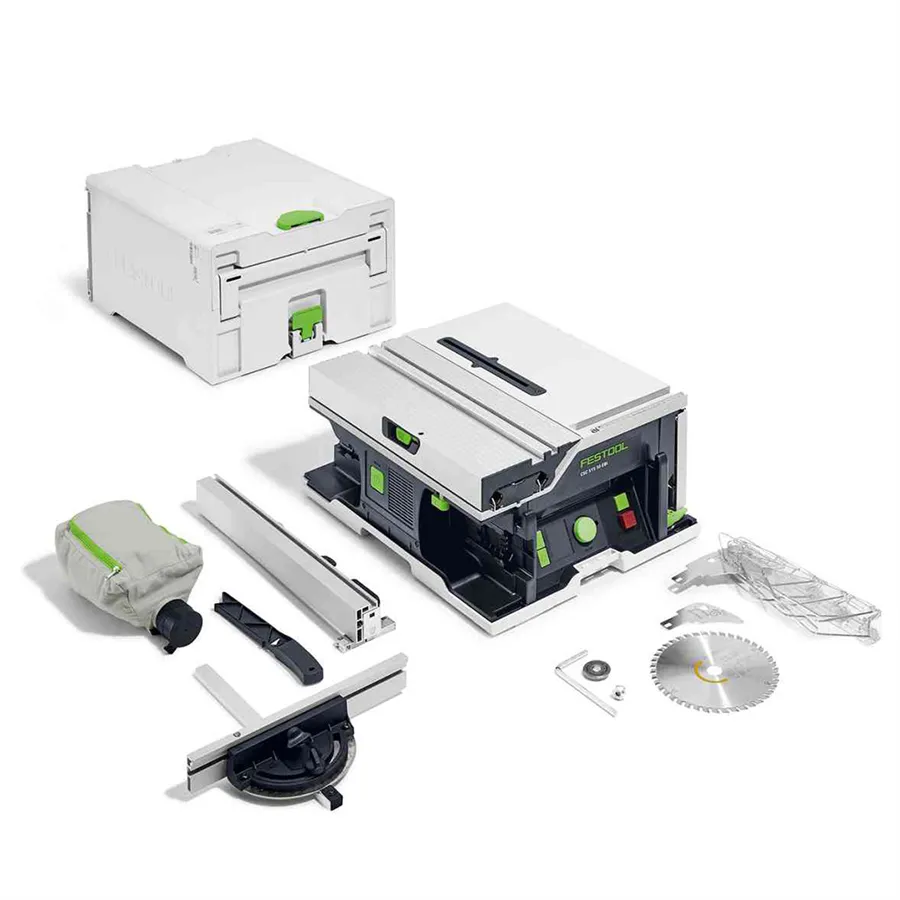

Items inluded- WOOD FINE CUT HW 168 x 1.8 x 20 WD42 circular saw blade,
- parallel side fence,
- workpiece holder,
- preset profile setting rail,
- chip collection sack,
- splitting wedge for concealed cuts,
- splitting wedge with protective hood,
- hex key,
- WAF 6
