Compact powerhouse drilling with maximum performance.
With vibration damping, an ergonomic C-shape and weighing only 2.5 kg (incl. 4.0 Ah Li-HighPower Compact battery pack), the BHC 18 cordless hammer drill combines maximum performance with low weight – for powerful and effortless drilling even in the hardest materials. The brushless EC-TEC motor requires no maintenance and makes it so robust and powerful. With extraordinarily high impact energy, the BHC 18 drills powerfully into concrete, stone and masonry. The integrated vibration damping prevents the impact energy from being transferred to your hands. For dust-free working with the drilling dust nozzle, the Bluetooth® battery pack conveniently starts a connected CLEANTEC mobile dust extractor automatically when switching on the tool.
• Lightweight, maximum performance: Thanks to the powerful EC-TEC motor and compact C-shape
• Work effortlessly: Vibration damping absorbs the impact energy before it is transferred to your hands
• Robust: Brushless, maintenance-free EC-TEC motor for a long service life.
• Individual battery power: For maximum ease of use for shorter and less demanding applications with the 3.0 Ah Compact battery pack. Or for full power and endurance with the 4.0 Ah Li-HighPower Compact battery pack
• Even without impact: Percussive shut-off system possible e.g. for spot-drilling tiles
• Convenient extraction: The battery pack communicates via Bluetooth® with the Bluetooth® module of the CLEANTEC mobile dust extractor (can be retrofitted to the CT 26/36/48 as an accessory, directly integrated into the CT MINI I and MIDI I) and starts the mobile dust extractor automatically when the cordless tool is switched on
Extremely long-lasting: No matter which battery pack you combine your Basic version with, our battery packs are extremely durable thanks to the high-quality battery cells And, of course, fully covered by Festool Service Including our full repair service that is free of charge Fast, thorough and – also completely unique for battery packs and chargers: Nothing to pay in the first three years.
Main applications
• Ideal for hammer drilling up to a diameter of 10 mm in concrete, stone and masonry (maximum diameter of 18 mm possible)
• Its light weight and the compact design ensure great balance. It is therefore ideally suited for continuous use for interior finishing and assembly right up to securing EIF systems
• Fastening of substructures, ceiling suspensions and other elements (dia. 5–10 mm) to concrete and masonry
• Fastening of kitchen cabinets, wall shelves, sound insulation elements, drywalls, skirting boards
• Drilling and screwdriving without impact, such as when spot-drilling floor tiles
• Electrical socket cutting up to Ø 68 mm in lime sand brick and masonry
• Working with dust extraction – Bluetooth® battery pack automatically starts Bluetooth®-compatible mobile dust extractor in AUTO mode
Technical data
• Battery voltage 18 V
• Gears 1
• Idle engine speed 0 - 1 100 min⁻¹
• Max. number of strokes 4895.00 min⁻¹
• Drilling dia. (concrete) 18.00 mm
• Max. crown borer hole diameter 68.00 mm
• Max. torque, wood/steel 10/25 Nm
• Tool holder SDS-Plus
• Single impact energy 1.80 J
• Dimensions (L x W x H) 280 x 88 x 237 mm
• Product weight without accessories 1.90 kg
• Transport weight incl. accessories 4.20 kg
• Drive type Battery
Noise ans vibration values
• Hammer drilling in concrete: Uncertainty (noise) K 3.00 dB
• Hammer drilling in concrete: Total vibration average, Ah 14.00 m/s²
• Hammer drilling in concrete: Uncertainty (vibration) K 3.00 m/s²
• Hammer drilling in concrete: A-weighted sound power level, LWA 99.00 dB(A)
• Hammer drilling in concrete: Standards series EN 60745-2-6
• Hammer drilling in concrete: A-weighted sound pressure level, LpA 88.00 dB(A)

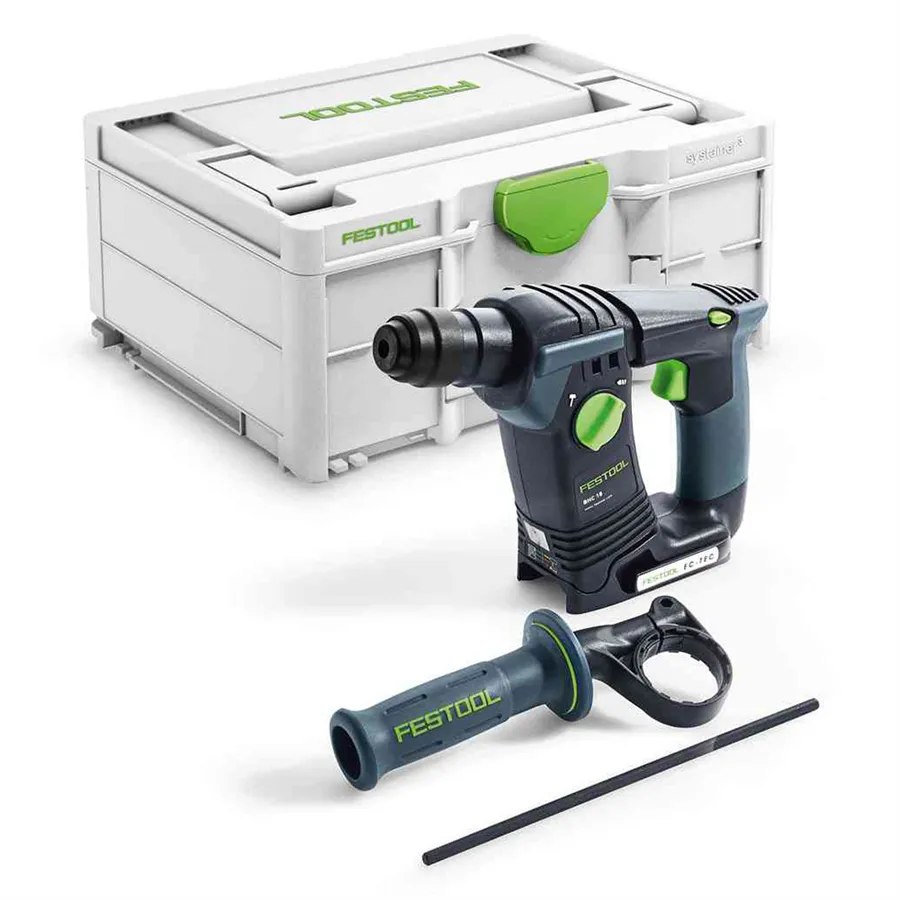

Items included
• additional side-mounted hand grip
• depth stop
• Systainer SYS3 M 187
